Issues getting DPDK to work with High Bandwidth Memory

[salihu john]

Hello,

I have High Bandwidth Memory setup in Flat mode on a server so we have an
extra NUMA node (Node 1 in the image attached) which has the HBM memory
with 64GB. The issue is when I run a dpdk application like l2fwd, it
doesn't seem to see the NUMA node of the HBM and shows that I just have a
single NUMA node. I also can't get the application to allocate memory on
HBM. How can I set this up?

Thanks,
John.

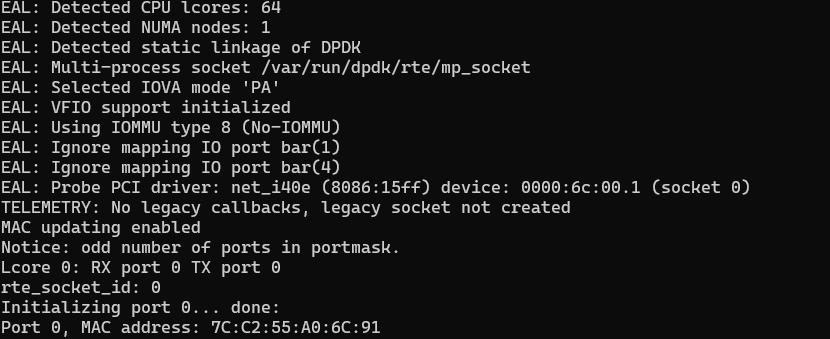

[image: L2fwd screenshot (1).png]

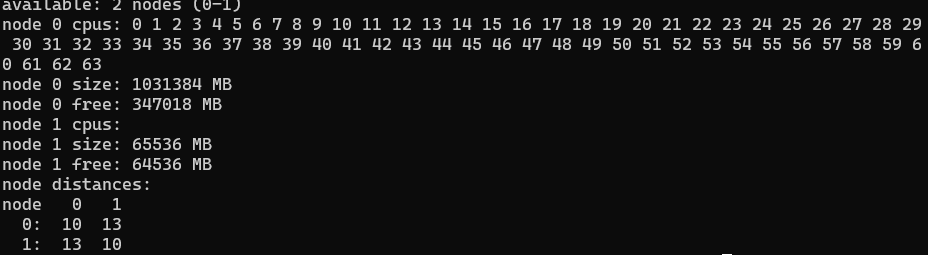

[image: 078951de-ebc0-431f-9274-1496fa63796e.png]
